Description
Convert your HPI SAVAGE RC Trucks into a HPI Savage Octane with your Bigger Gas Engine!
This Savage Octane Conversion Kit allows you to use a 23cc or even bigger gas engine on this lengthened 1/8 HPI Savage Chassis.
A Zenoah G230RC gas engine or a Chung Yang CY23RC engine is recommended.
Kit includes:

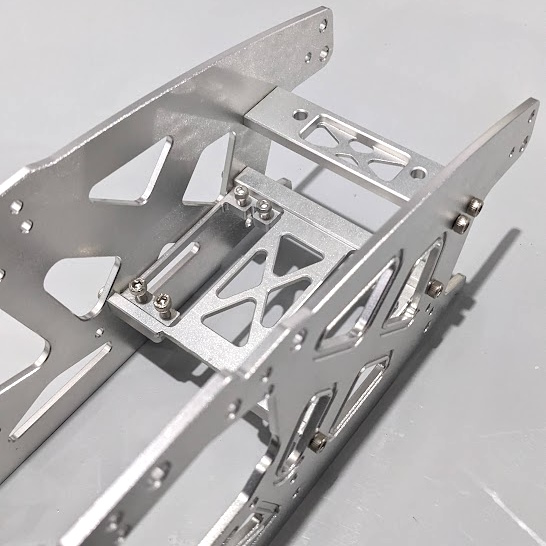

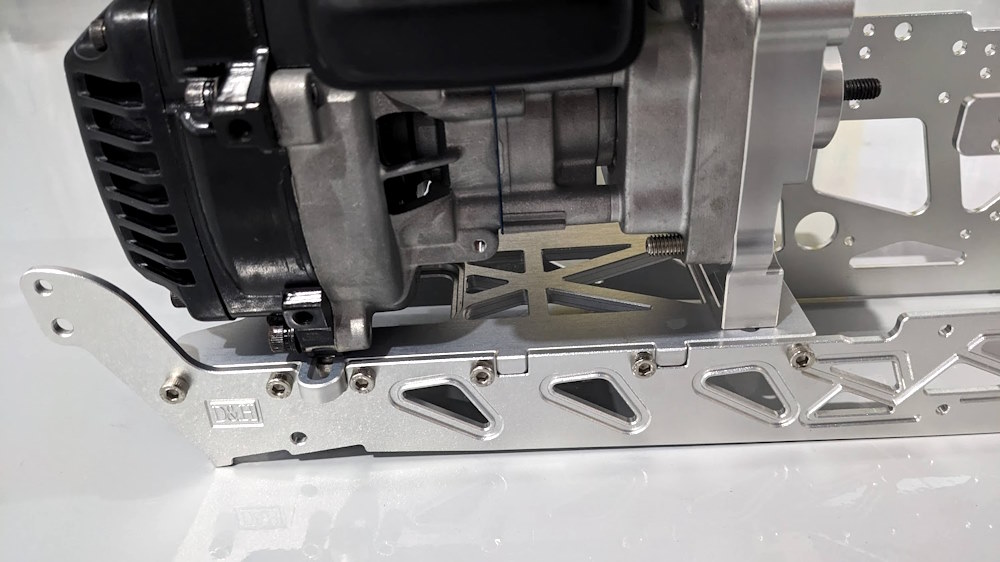

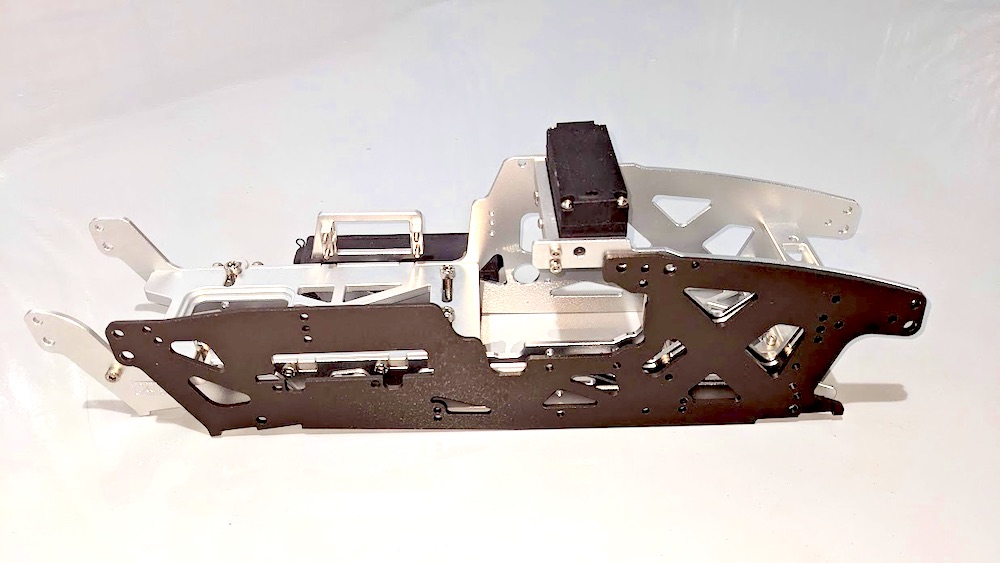

- 3mm Thick TVP Main Chassis (Left+Right) – 7075-T6
- Engine Plate – 7075-T6

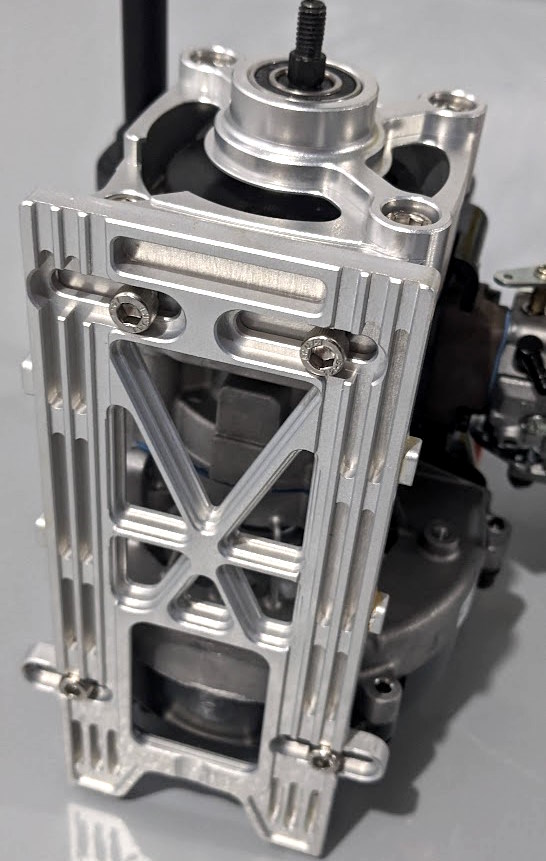

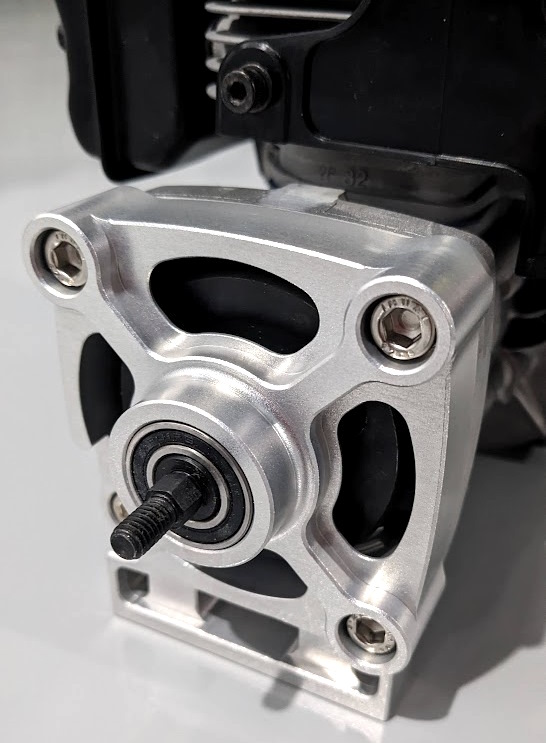

- Engine/Clutch Bell Mount – 7075-T6

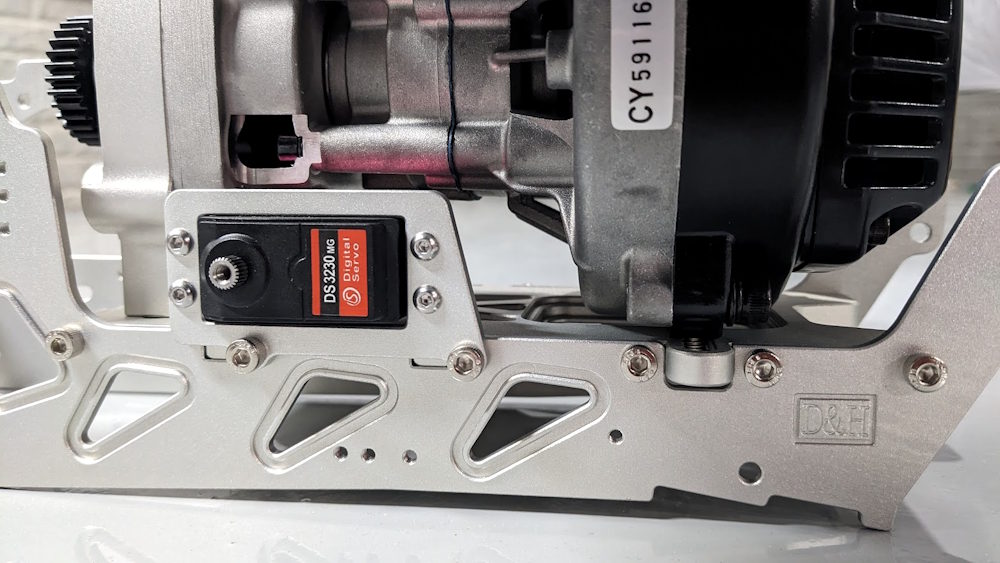

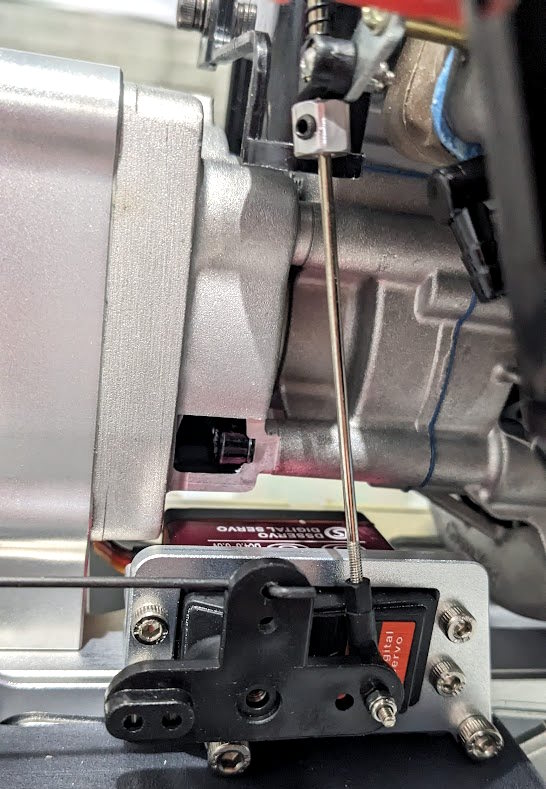

- Throttle Servo Bracket – 7075-T6
- Steering Servo Bracket and Steering Support – 7075-T6

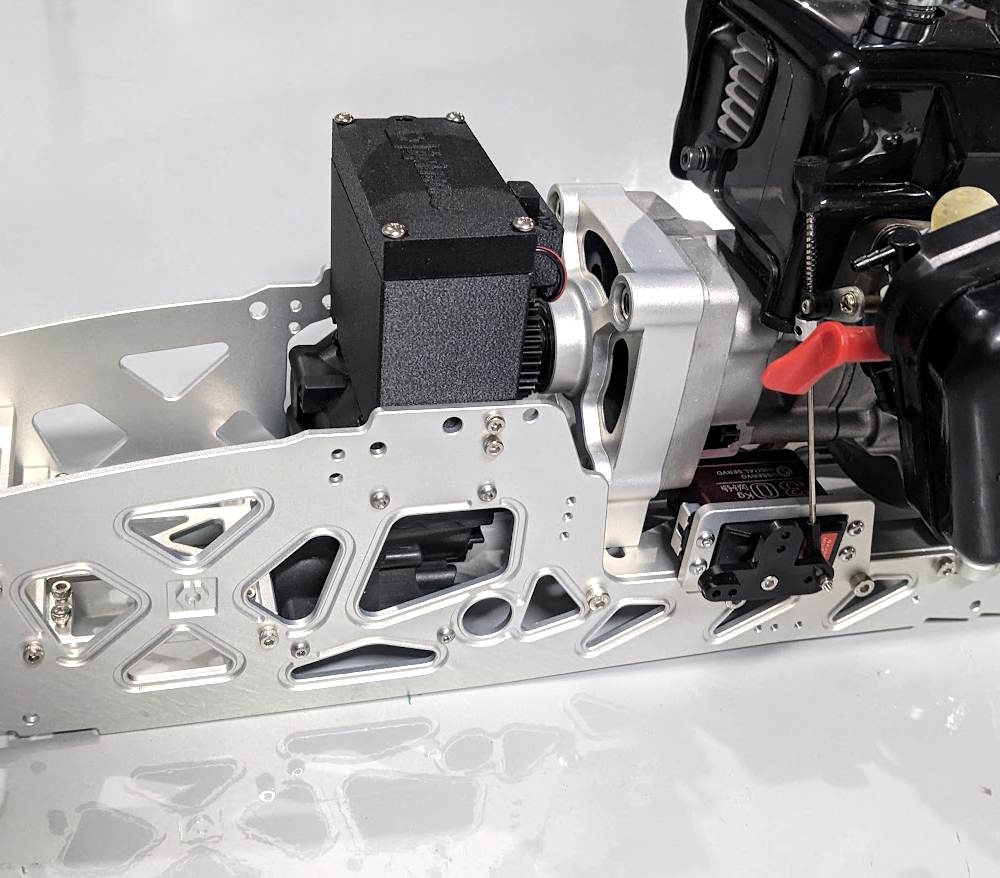

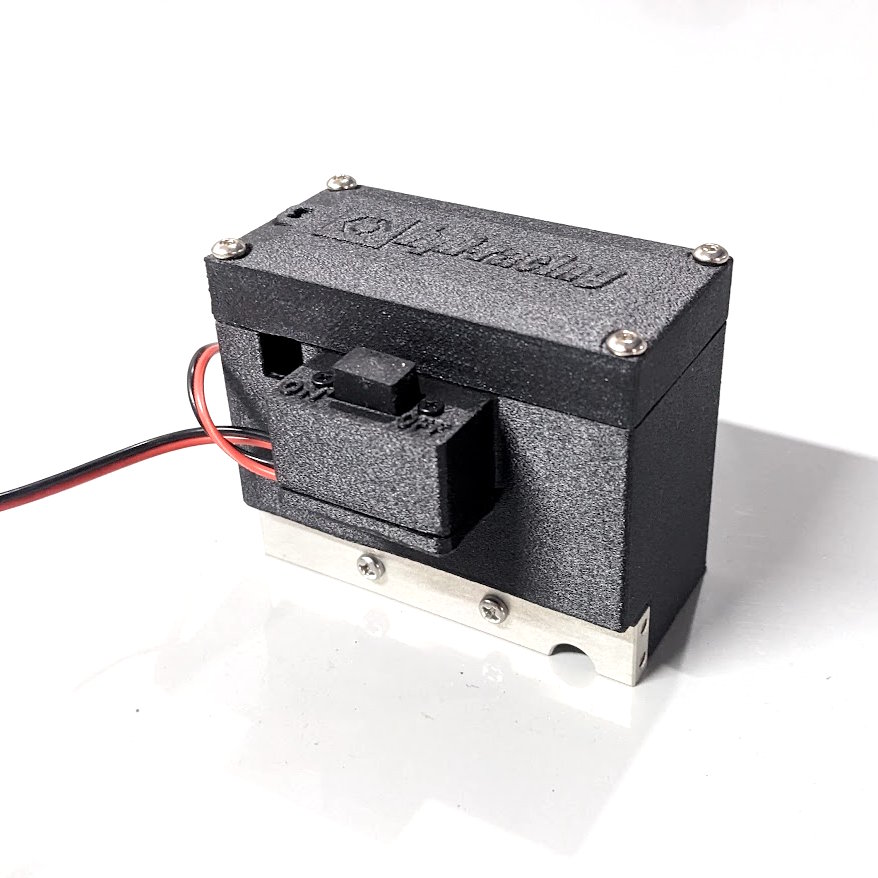

- Radio Box Bracket (7075-T6) and Radio Box (Nylon)

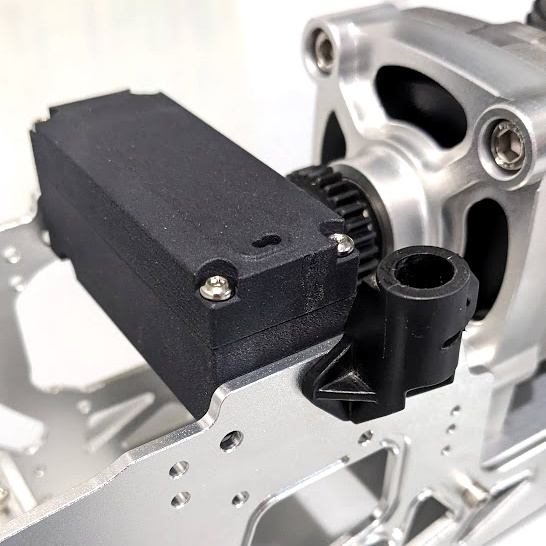

- Battery Box (Nylon) – Internal dimensions: 110x35x22mm (Battery Recommendation 1 2)
- Center Rear Dogbone 179mm

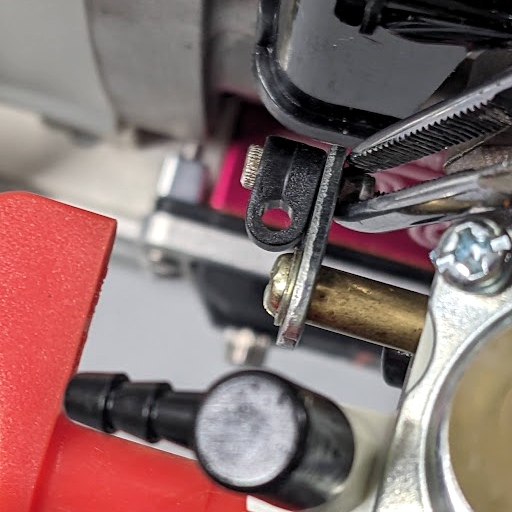

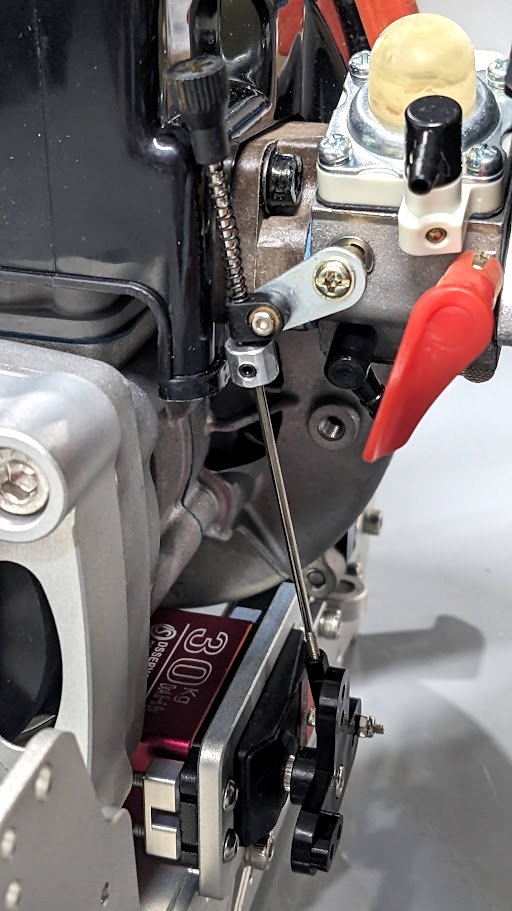

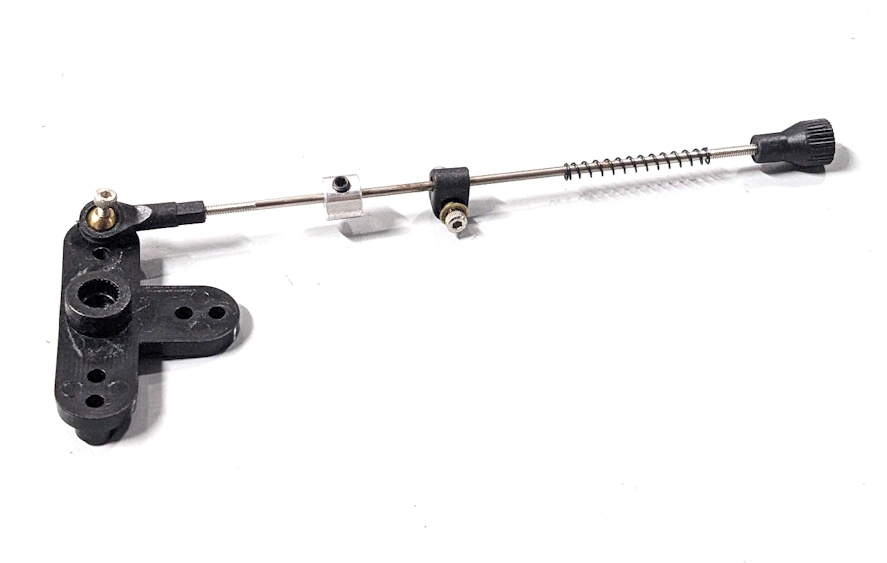

- Throttle Control Set

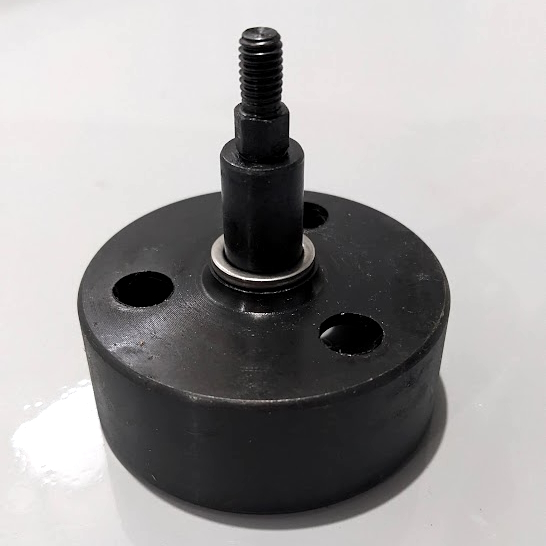

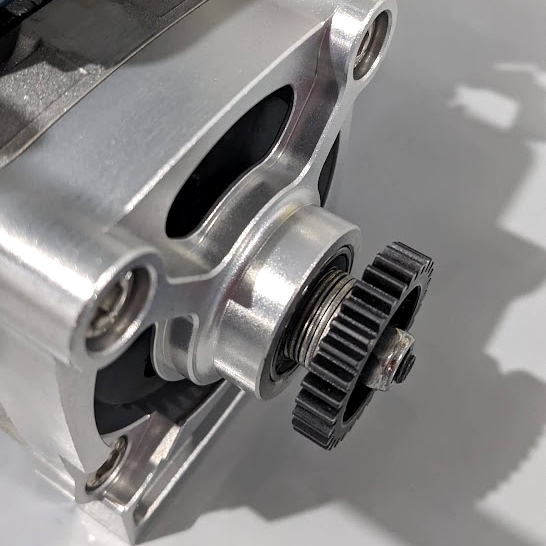

- Clutch Bell with Bearings

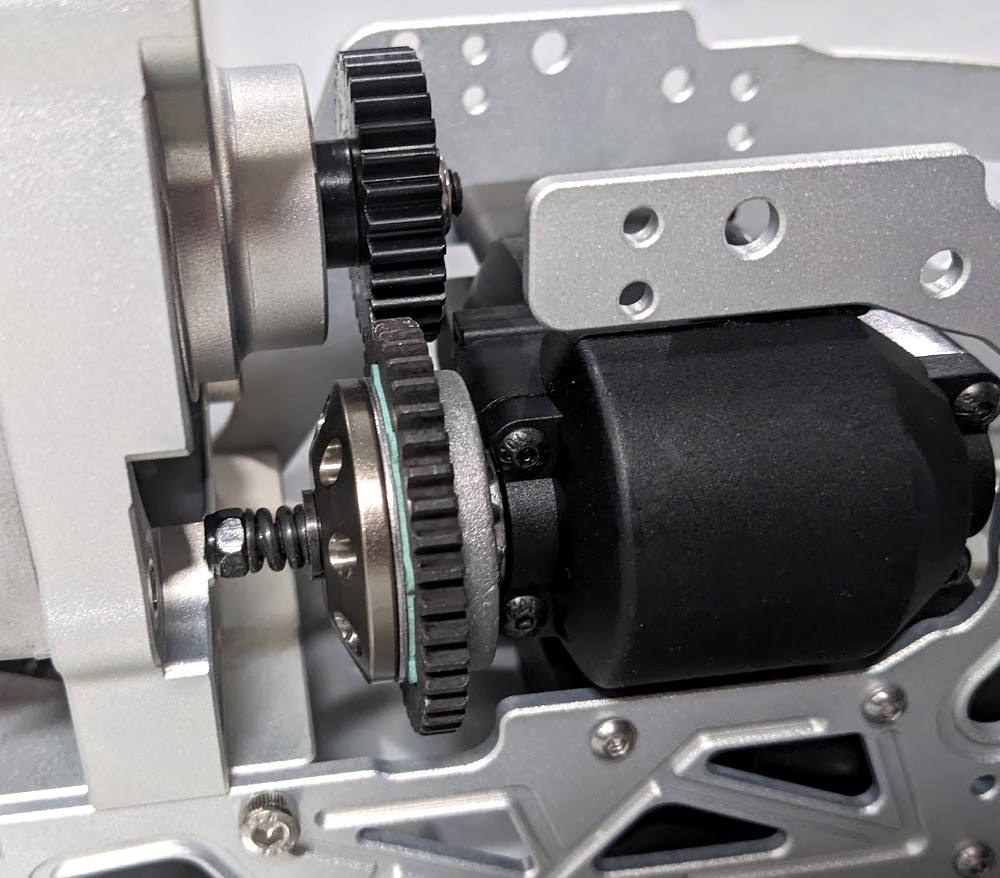

- 30T Pinion Gear (For Single Speed Center Diff Transmission #XL90013)
Or 21T Pinion Gear (For HPI Savage Octane 3-Speed Transmission) - Screws and Washers
You may need: (Depending on your situation, this list may not be complete)
- HPI Savage Front and End and your Gas Engine(Of course)
- XL Flux Center Differential Gear Box with TSC Set
- Or: HPI Savage XL Octane 3-Speed Transmission with Spur and Slipper Clutch
- HPI 108944 – Fuel Tank Set
- HPI 109786 – Tank Mount Set
- HPI 109024 – Brake Pad Mount and HPI 111347 – Brake Disk Set
- HPI 109268 – BRAKE HUB 6X8X19MM
- HPI 108948 – Throttle Servo Saver and Brake Lever Set
- HPI 109907 – Center Front Dog Bone 8×70.5mm
You Do Not need the items in the list above, if you are converting a stock HPI Savage Octane. All the items in the list are already on your truck. All you need is just a 23cc gas engine as recommended.
Original HPI Savage Octane exhaust pipe on 23cc Engine:
Note about screws
M6x25 Cap Head Screws: Engine – Clutch Bell Mount
M5x16 Cap Head Screws: Engine – Engine Plate
M4x12 Cap Head Screws: Engine Plate – Side Plates
M4x20 Cap Head Screws: Throttle Servo Bracket – Left Side Plate
M3x8 / M3x10 Cap Head Screws: Side Plates – Steering Servo Bracket and Steering Support/Radio Box/Roll Cage Mount
M3x16 Button Head Screws: Servo – Throttle Servo Bracket
M3x8 Self Tapping Screws: Radio Box Bracket – Radio Box
M3x16 Self Tapping Screws: Radio Box – Radio Box Cover
M3x12 Self Tapping Screws: Side Plates – Transmission Gear Box
