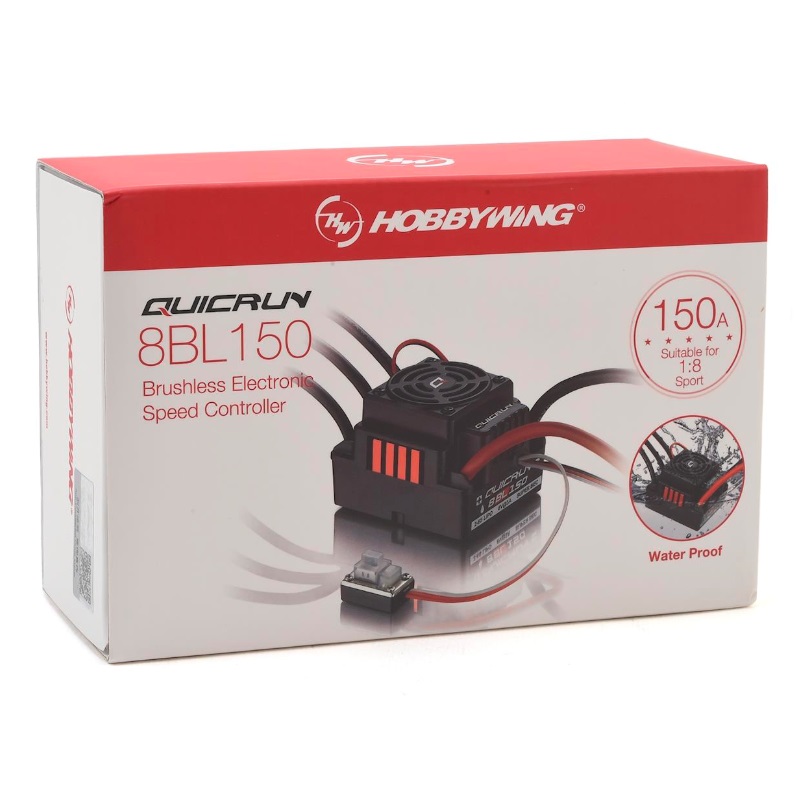

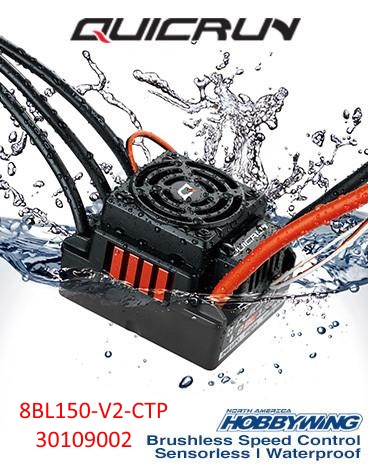

HobbyWing QuicRun WP-8BL150-V2-CTP Waterproof Brushless ESC (2~6S 150A)
HobbyWing QuicRun WP-8BL150-V2-CTP Waterproof Brushless ESC (2~6S 150A)

HobbyWing QuicRun WP-8BL150-V2-CTP Waterproof Brushless ESC (3~6S 150A)

$84.99

Model / SKU
QUICRUN-WP-8BL150 V2 CTP/  30109002

Out of stock

Email me when available

3 sets sold
Categories: , , , , , , , , , , ,

Description

Use 3 pieces of 4mm Bullet Plugs on your Brushless Motor to connect to this ESC.

Feature
  • Water-proof and dust-proof for all-weather races.
  • Battery: 3-6S Lipo
  • Cont./Peak Current: 150A/950A
  • BEC Output: 6V/3A (Switch Mode)
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1:8 Buggy/Monster
  • Working voltage of Fan: From BEC (6V)
  • External programming port, easy to connect to the Program Card when setting the ESC.
  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
  • Multiple protections: Low voltage cut-off protection/Over-heat protection/Throttle signal loss protection/Motor lock-up protection.
  • One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
  • Motor Limit: For 4S Lipo or 12 cells NiMH: 4274-size or smaller motor with the KV<3000 For 6S Lipo or 18 cells NiMH: 4274-size or smaller motor with the KV<2400
  • Size/ Weight: 59.5(L)*48(W)*42(H) / 178g







Additional information

Weight 11 oz
Dimensions 5.5 × 3.5 × 2.2 in
Type

Electronics
