29T Differential Ring Gear Set for HPI SAVAGE 4.6 5.9 FLUX #G89016

Description

Click Here for the article and video about HPI Savage Differential Maintenance

Pre-assembled 29T Differential Set for the HPI Savage Trucks.

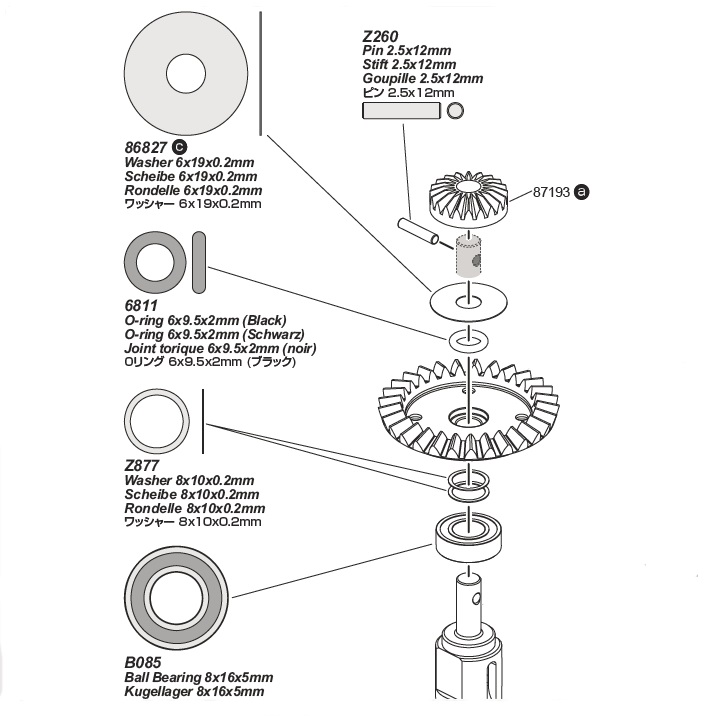

Including:

29T Hard Steel Bevel Gear #160090

HEAVY DUTY DIFF SHAFT

(Cup Inner Diameter: 11mm. For 11mm ball end dog bones: 86246, SAV8020, or CVD)

Small and Large Bevel Gears (Spider Gears)

Alloy Diff Case Set

BALL BEARING 8x16x5mm  #B085

BALL BEARING 10x16x5mm #B032

WASHER 8x10x0.2mm  #z877

Washer 6x19x0.2mm #86827c

WASHER 10x12x0.2mm #z892

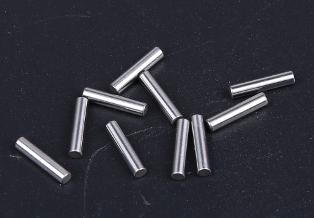

Pin 2.5x12mm #z260

O-Ring 6×9.5x2mm #6811

Please note: The screws used on this Diff Set are #Z083

Use Differential Case Washer #86099 to seal the diff.

Use Team Associated Differential Fluid in this Diff Set.

Tech Note

When changing Diff Fluid, please take great care when disassemble the differential case inside the tranny gearbox: Before removing the screws, please use hot air gun or soldering iron to heat them up for several good minutes. This will make the thread locker softer. High quality hex tool is needed. Please use hand tool with great care.

**Recommend: Use Silicon Grease such as this to protect the gears.
